P3 Profile

P3 Profile

Productinfo

The ideal solution for trellis systems with a height of up to 1.20 m above the ground. The P3 profile was specifically developed for lower trellises and is a great post for this application.

Custom designs are available on request.

Our posts are available in the following variants :

  • Hot dipped galvanised (HDG)
  • Pre-galvanised strip (Z275)
  • Zinc-Aluminium-Magnesium (ZM310)
  • Weatherproof steel



For intermediate posts the profile opening should always be facing the slope.

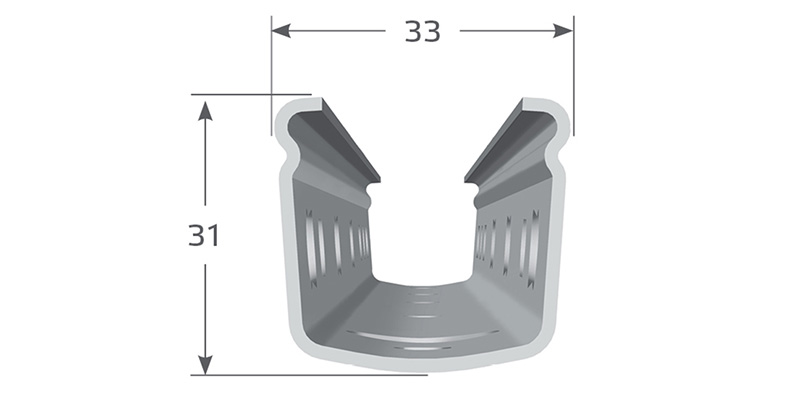

Technical details

P3 installation depth table

Post length
(cm)		 Recommended
installation depth (cm)
140 40-45
160 50
180 55
200 60-65



P3 Configuration table

Hooks Post length (cm)
140-160 180-200
Pairs of hooks
Short tapered S-hook 10 mm 1 1
Long tapered S-hook 10 mm 4 5
Short tapered S-hook 10 mm 1 2
S-hook 8 mm 1 1
Double hook 8 mm 1 1
Total number of pairs of hooks 8 10

Hooks

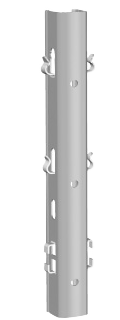

Fixed wire area P3 Profile
Fruiting/moving wire area P3 Profile
Fixed wire area P3 Profile

Fixed wire area: standard Hooks

Short tapered S-hook 10 mm » Short tapered S-hook 10 mm
8 mm S-hook » 8 mm S-hook
8 mm Double hook » 8 mm Double hook

Fruiting/moving wire area: optional Hooks

Long tapered S-hook 10 mm » Long tapered S-hook 10 mm
Short tapered S-hook 10 mm » Short tapered S-hook 10 mm
