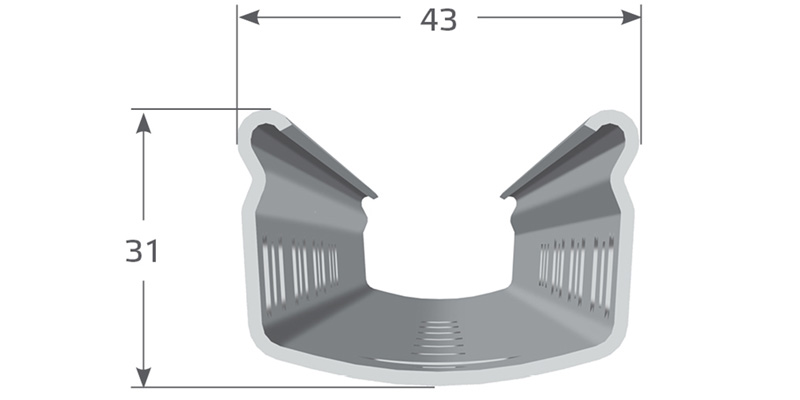

P4 Profile

P4 Profile

Productinfo

The P4 can be used for low and medium trellis system heights of up to 1.60 m above the ground. It is fitted with tapered S-hooks in the standard version and is also available with Combi-hooks.

Custom designs are available on request.

Our posts are available in 3 different types:

  • Hot Dipped Galvanised
  • Strip Galvanised (Z350)
  • Weathering steel



For intermediate posts the profile opening should always be facing the slope.

Technical details

P4 installation depth table

Post length
(cm)
Recommended
installation depth (cm)
140 40-45
160 50
180 55
200 60-65
220 65
230 70



P4 Configuration table

Hooks Post length(cm)
140-160 180-190 200-220 230

Number of pairs of hooks

Short tapered S-hook 10 mm 1 1 1 1
Long tapered S-hook 10 mm 4 5 6 7
Combi hook
14 mm
4 5 6 7
Short tapered S-hook 10 mm 1 2 3 4
S-hook 8 mm 1 1 1 1
Double hook
8 mm
1 1 1 1
Total number of
pairs of hooks
8 10 12 14

The options for the fruiting/moving wire area are highlighted in green. Only one type per post is possible.

Hooks

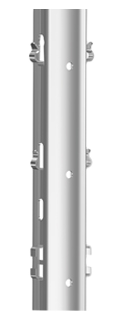

Fixed wire area P4 Profile
Fruiting/moving wire area P4 Profile
Fixed wire area P4 Profile
