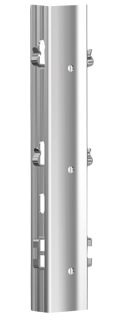

P5 Profile
Productinfo

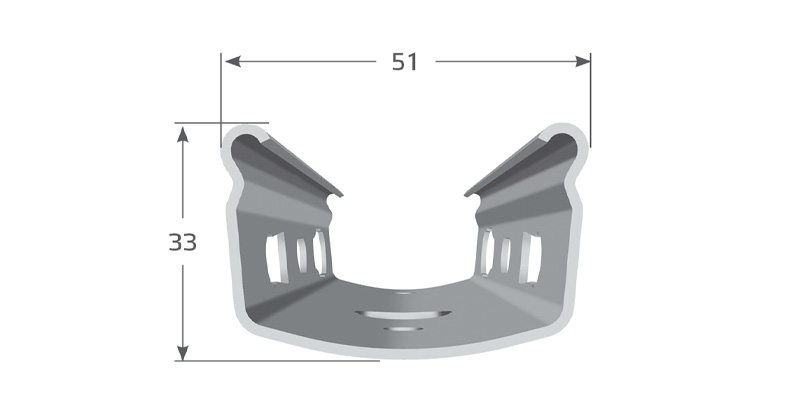

The dimension of the P5 means that it can be used for intermediate and high trellis heights of up to 1.85 m above the ground.
The standard design is made with a distance of 10 cm between hooks and the patented
tapered S-hook. It is also available with the new R-hook as well as with the Combi-hook.
Custom designs are available on request.
Our posts are available in the following variants :
- Hot dipped galvanised (HDG)
- Pre-galvanised strip (Z275)
- Zinc-Aluminium-Magnesium (ZM310)
- Weatherproof steel
Technical details
P5 installation depth table
| Post length (cm) |
Recommended installation depth (cm) |
| 180 | 55 |
| 200 | 60-65 |
| 220 | 65 |
| 240 | 70 |
| 250 | 75 |
| 260 | 80 |
| 270 | 85 |
P5 Configuration table
| Hooks | Post length (cm) | ||
| 180-190 | 200-220 | 240-270 | |
| Number of pairs of hooks | |||
| Short tapered S-hook 10 mm | 1 | 1 | 1 |
| Long tapered S-hook 10 mm | 5 | 6 | 7 |
| R-hook 10 mm | 5 | 6 | 7 |
| Combination hook 14 mm | 5 | 6 | 7 |
| Short tapered S-hook 10 mm | 2 | 3 | 4 |
| S-hook 8 mm | 1 | 1 | 1 |
| Double hook 8 mm | 1 | 1 | 1 |
| Total number of pairs of hooks | 10 | 12 | 14 |
The options for the fruiting/moving wire area are highlighted in green. Only one type per post is possible.
Hooks
Fixed wire area
Fruiting/moving wire area
Fixed wire area
» Short tapered S-hook 10 mm
» 8 mm S-hook
» 8 mm Double hook
» R-hooks
» Long tapered S-hook 10 mm
» Combi-hooks
