P5E Profile
Productinfo
The P5E end post provides the best solution for
all systems:
- Large pull out hole
- Attachment holes in the back wall for a centre tensioning of fixed wires
- Holes at ground level for the base plate
- Attach end posts to the base plate using a simple plug system
- Options for attaching any type of brackets for chains
- Lateral hooks can be used to attach and tension wires
- Available in four thicknesses:
- up to 80m row length with 1.65 mm thickness
- over 80m row length with 2.15 mm thickness in HDG
- over 150m row length with 2.65 mm thickness
- 2mm thick for strip galvanised Z275
Our posts are available in the following variants :
- Hot dipped galvanised (HDG)
- Pre-galvanised strip (Z275)
- Zinc-Aluminium-Magnesium (ZM310)
- Weatherproof steel
Technical details
P5E installation depth table
| Post length (cm) |
Recommended installation depth (cm) |
| 180 | 55 |
| 200 | 60-65 |
| 230 | 70 |
| 250 | 70-75 |
| 275 | 85 |
| 300 | 95 |
P5E Configuration table
| Hooks | Post length(cm) | |||||
| 180 | 200 | 230 | 250 | 275 | 300 | |
| Number of pairs of hooks | ||||||
| S-hooks | 10 | 12 | 14 | 14 | 14 | 16 |
| Total number of pairs of hooks | 10 | 12 | 14 | 14 | 14 | 16 |

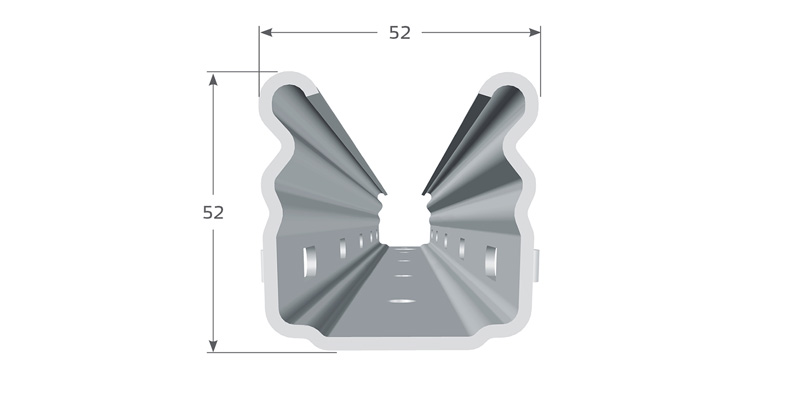

Profile

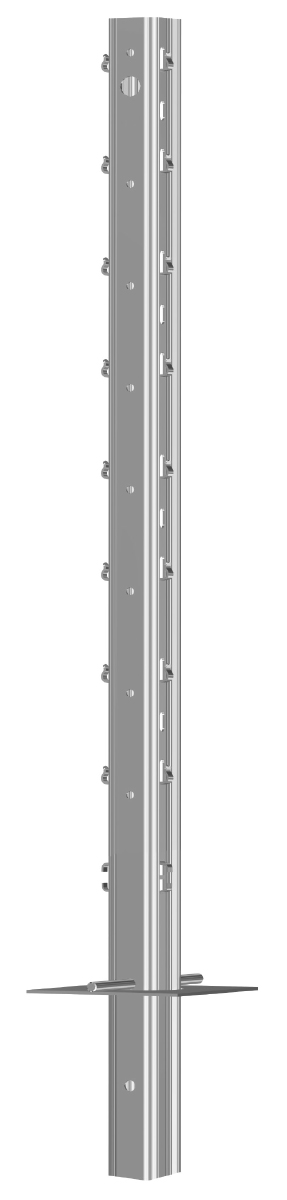

Profile with base plate
