Productinfo

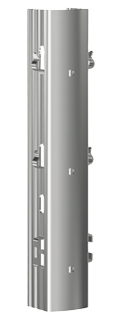

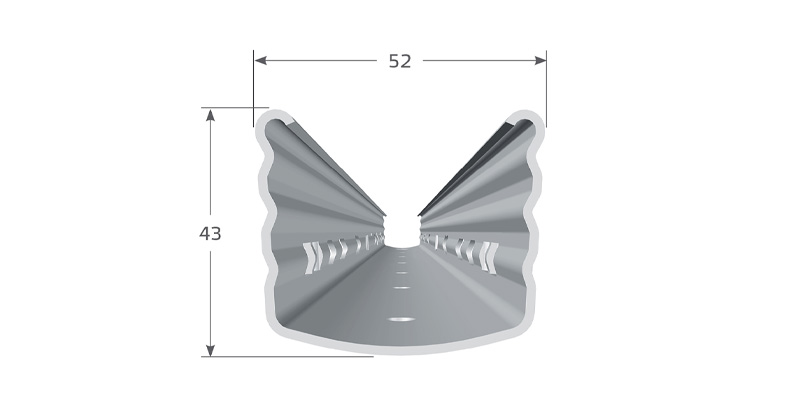

The large lateral profile is even greater with the P5L. A side length of 43 mm guarantees stability for tall and high load trellises of up to 2.10 m above the ground.

The post is manufactured with 10 cm between hooks and the patented tapered S-hook is fitted as standard. The new R-hook and Combi-hook can also be used here.

Custom designs are available on request.

Our posts are available in 3 different types:

  • Hot Dipped Galvanised
  • Strip Galvanised (Z350)
  • Weathering steel



For intermediate posts the profile opening should always be facing the slope.

Technical details

P5L installation depth table

Post length
(cm)
Recommended installation depth (cm)
250 70-75
260 80
270 85
280 90
300 95



P5L Configuration table

Hook Post length(cm)
250-270 280-300
Pairs of hooks
Short tapered S-hook 10 mm 1 1
Long tapered S-hook 10 mm 7 7
R-hook 10 mm 7 7
Combination hook 14 mm 7 7
Short tapered S-hook 10 mm 4 4
S-hook 8 mm 1 3
Double hook 8 mm 1 1
Total number of pairs of hooks 14 16

The options for the fruiting/moving wire area are highlighted in green. Only one type per post is possible.



Hooks

Fixed wire area P5L Profile
Fruiting/moving wire area P5L Profile
Fixed wire area P5L Profile
