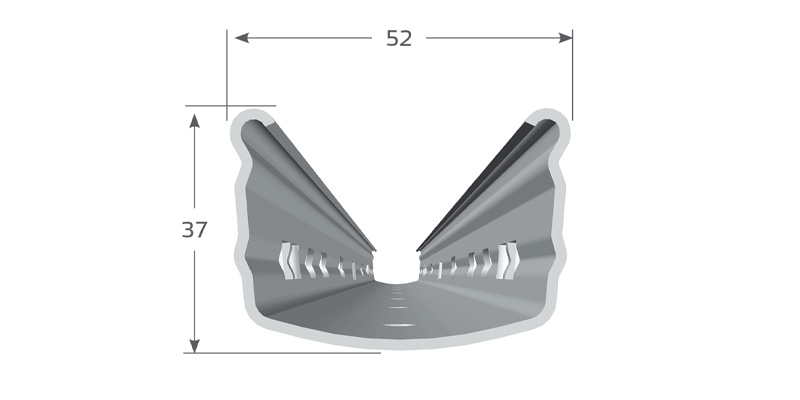

P5M Profile
Productinfo
This variant of the P5 post, which has a reinforced lateral length (37 mm), can be used for trellises of up to a height of 1.95 m above the ground.

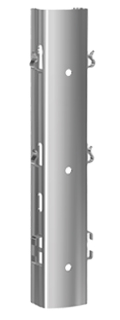

The P5M is manufactured with the tapered S-hook on the standard model. These form large, stable wire eyes and are suitable for use with any machinery in the vineyard. The new R-hook can be used here, as well as the Combi-hooks.
Custom designs are available on request.
Our posts are available in the following variants :
- Hot dipped galvanised (HDG)
- Pre-galvanised strip (Z275)
- Zinc-Aluminium-Magnesium (ZM310)
- Weatherproof steel
For intermediate posts the profile opening should always be facing the slope.
Technical details
P5M installation depth
| Post length (cm) |
Recommended installation depth (cm) |
| 230 | 65-70 |
| 240 | 70 |
| 250 | 75 |
| 260 | 80 |
| 270 | 85 |
| 280 | 90 |
P5M Configuration table
| Hook | Post length(cm) | |
| 230-270 | 280 | |
| Pairs of hooks | ||
| Short tapered S-hook 10 mm | 1 | 1 |
| Long tapered S-hook 10 mm | 7 | 7 |
| R-hook 10 mm | 7 | 7 |
| Combination hook 14 mm | 7 | 7 |
| Short tapered S-hook 10 mm | 4 | 4 |
| S-hook 8 mm | 1 | 3 |
| Double hook 8 mm | 1 | 1 |
| Total number of pairs of hooks | 14 | 16 |
The options for the fruiting/moving wire area are highlighted in green. Only one type per post is possible.
Hooks
Fixed wire area
Fruiting/moving wire area
Fixed wire area
» 8 mm Double hook
» Short tapered S-hook 10 mm
» 8 mm S-hook
» R-hooks
» Long tapered S-hook 10 mm
» Combi-hooks
