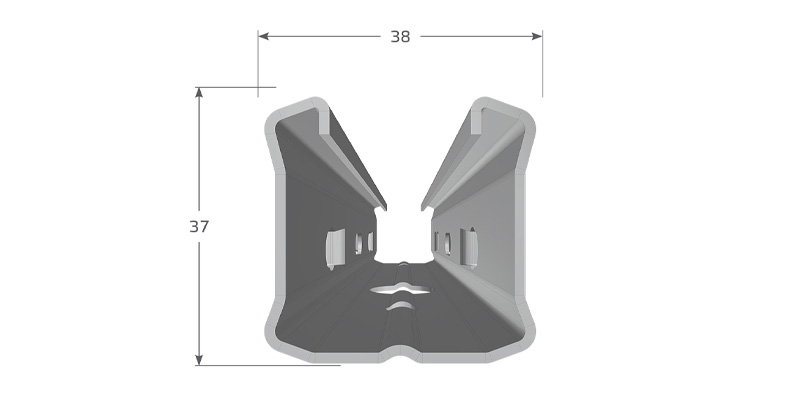

P5X Profile
Productinfo
The P5X was developed for use in difficult ground. Due to the almost square shape and compact profile, it is very stable and robust, whilst maintaining flexibility for use with all types of vineyard machinery.
The standard version of the P5X is manufactured with the R-hook. S-hooks, Combi-hooks and double hooks options are also available, as with all our models.
Our posts are available in the following variants :
- Hot dipped galvanised (HDG)
- Pre-galvanised strip (Z275)
- Zinc-Aluminium-Magnesium (ZM310)
- Weatherproof steel
Technical details
P5X Installation depth table
| Post length [cm] |
Recommended installation depth[cm] |
| 180 | 55 |
| 200 | 60-65 |
| 220 | 65 |
| 240 | 70 |
| 250 | 75 |
| 260 | 80 |
| 270 | 85 |
P5X Configuration table
| Hooks |
Post length(cm) | ||
| 180-190 | 200-220 | 240-270 | |
| Number of pairs of hooks | |||
| Short tapered S-hook 10 mm | 1 | 1 | 1 |
| Long tapered S-hook 10 mm | 5 | 6 | 7 |
| R-hook 10 mm | 5 | 6 | 7 |
| Combination hook 14 mm | 5 | 6 | 7 |
| Short tapered S-hook 10 mm | 2 | 3 | 4 |
| S-hook 8 mm | 1 | 1 | 1 |
| Double hook8 mm | 1 | 1 | 1 |
| Total number of pairs of hooks | 10 | 12 | 14 |
Hooks
Fixed wire area
Fruiting/moving wire area
Fixed wire area
» 8 mm S-hook
» R-hooks
» Long tapered S-hook 10 mm
» Combi-hooks
