P7E Profile

P7E Profile


The P7E end post was specifically developed for dynamic use for viticulture and trellis systems. Modern vineyard labour is becoming increasingly more automated, so the modern trellis needs to be flexible and resistant. The wires can be installed to be fixed or movable with the accessories that are specially developed for the P7E.

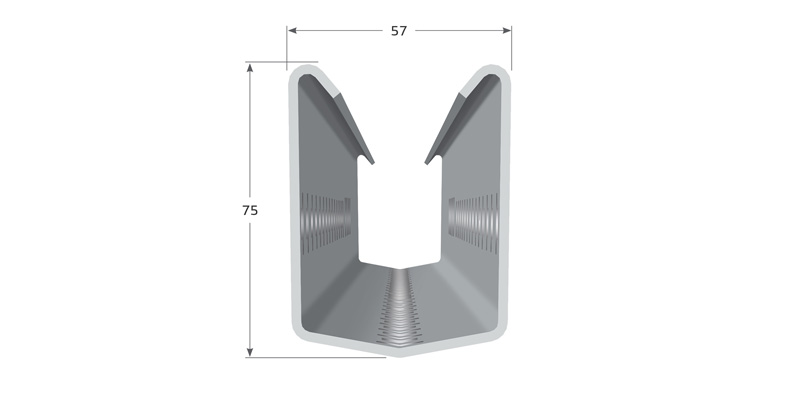

The dimensions of 75 mm in the direction of tension and material thicknesses of up to 2.65 mm gives the P7E stability that can satisfy the highest demands.

  • Attachment holes in the back wall for a centre tensioning of fixed wires
  • Holes at ground level for the base plate
  • Attach end posts to the base plate using a simple plug system
  • Options for attaching any type of brackets for chains

Available in three thicknesses:

  • up to 80 m row length with 1.65 mm thickness
  • over 80 m row length with 2.15 mm thickness
  • over 150 m row length with 2.65 mm thickness.


Our posts are available in the following variants :

  • Hot dipped galvanised (HDG)
  • Pre-galvanised strip (Z275)
  • Zinc-Aluminium-Magnesium (ZM310)
  • Weatherproof steel

The end pole should always be approx. 10-20 cm deeper than the first or last row pole.

Technical details

P7E installation depth table

Post length
Recommended installation depth (cm)
250 90
270 95
280 95
300 95

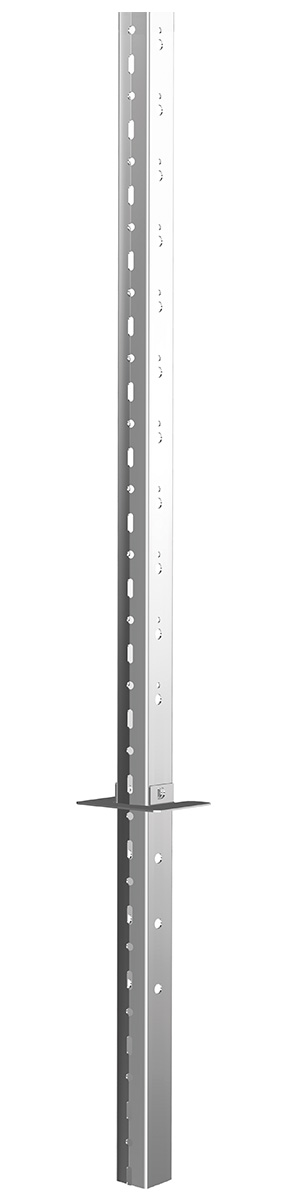

Profile with base plate P7E Profile
